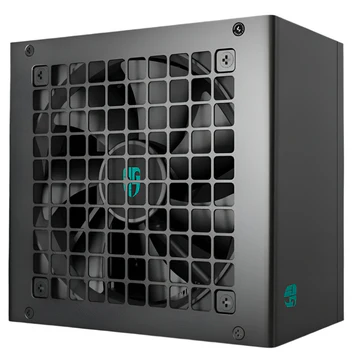

PN850D 850W-Power Supply

DEEPCOOL Gamer Storm PN850D 850W 80+ Gold Non Modular ATX 3.1 Power Supply

• 850W non-modular ATX 3.1 PSU from DeepCool GamerStorm PN850D series.
• 80 Plus Gold certified with ≥90% efficiency under 50% typical load.
• ATX 3.1 compliant with 3x GPU TGP power excursion support for 0.1ms.
• PCIe 5.1 ready: 12V-2×6 cable delivers up to 600W for modern GPUs.
• 105°C 16AWG copper-core sleeved cable ensures high current durability.
• Premium topology: Active PFC + Half Bridge SRC LLC + DC-to-DC design.
• Japanese bulk capacitor improves reliability and hold-up performance.
• Hold-up time ≥16ms at 80% load for stable power during fluctuations.
• 135mm Fluid Dynamic Bearing fan adjusts speed based on cooling needs.
• Sleeved cables included out of box for premium aesthetic and handling.
• Full protection suite: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.
• 0-40°C operating temperature with 100,000 hours MTBF rating.
• 150×150×86mm dimensions slightly longer than standard ATX units.
• BIS, CE, FCC, TUV certified with ErP 2014 and RoHS compliance.
• 10-year warranty backs this future-proof Gold PSU for high-end builds.
