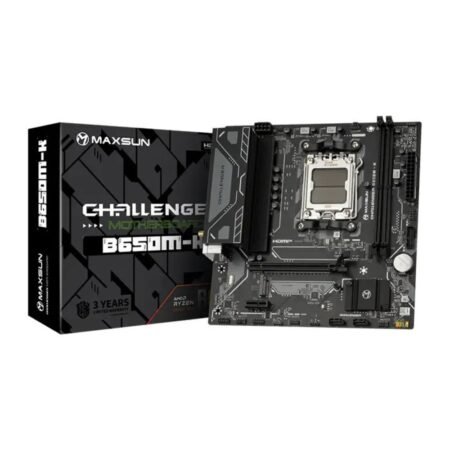

Maxsun MS-Challenger B650M-K Motherboard

Product Category	Motherboard
Brand / Model	Maxsun MS-Challenger B650M-K V2
Platform	AMD Platform
Chipset	AMD B650
CPU Support	AMD Ryzen 7000 / 8000 / 9000
Socket	AM5
Memory Slots	2× DDR5 DIMM
Max Memory	96 GB
Memory Speed	Up to 6400 MHz (OC)
Memory Features	Dual-channel, AMD EXPO
Graphics Output	1× HDMI 1.4 (4K@30Hz)
Expansion Slots	1× PCIe 5.0 x16, 1× PCIe 3.0 x1
M.2 Slots	1× M.2 PCIe 4.0 x4
SATA Ports	2× SATA 6Gb/s
Rear USB Ports	4× USB 3.2 Gen1 Type-A, 2× USB 2.0
Front USB Headers	1× USB 3.2 Gen1, 1× USB 2.0
LAN	Realtek RTL8111M (1Gb Ethernet)
Wireless Support	M.2 Key-E slot (Wi-Fi module support)
Audio	Realtek ALC897 HD Audio
Audio Ports	3× Audio jacks
Power Connectors	24-pin ATX, 8-pin CPU
Cooling Headers	1× CPU fan, 2× system fans
RGB Headers	2× ARGB (5V, 3-pin)
Internal Connectors	TPM, COM port, front audio, USB headers
Special Features	Debug LEDs, CLR_CMOS button, RGB Sync
Form Factor	Micro-ATX
Dimensions	225 × 220 mm
